Parent Layer: Sewer Abandoned (Brown)

Name: Sewer Abandoned Main

Display Field: DECOMTYPE

Type: Feature Layer

Geometry Type: esriGeometryPolyline

Description: <DIV STYLE="text-align:Left;"><DIV><DIV><P><SPAN>The decommissioned sewer main is a pipe that no longer participates in the sanitary sewer network. Decommissioned sewer mains are classified as either "Abandoned" (remains in the ground with the disconnected ends being capped) or "Removed" (removed from the ground). Types captured include: Gravity Main (Collector, Inverted Siphon, Outfall, Overflow, Trunk), Pressure Main and Service Line.</SPAN></P><P><SPAN /></P></DIV></DIV></DIV>

Copyright Text:

Default Visibility: true

MaxRecordCount: 3000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 10000.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: true

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 468904.08266875
YMin: 5364515.4117
XMax: 479454.96675
YMax: 5375779.02818125
Spatial Reference: 3157  (3157)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Unique Value Renderer:
Field 1: DECOMMAINTYPE
Field 2: N/A
Field 3: N/A
Field Delimiter: ,
Default Symbol:
N/A
Default Label: N/A
UniqueValueInfos:
• Value: sgmac
  Label: Gravity Main : Collector
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [255, 255, 190, 255]
  Width: 4
• Value: sgmbi
  Label: Gravity Main : Inverted Siphon
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [255, 255, 190, 255]
  Width: 4
• Value: sgmco
  Label: Gravity Main : Outfall
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [255, 255, 190, 255]
  Width: 3
• Value: sgmdo
  Label: Gravity Main : Overflow
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [255, 255, 190, 255]
  Width: 4
• Value: sgmet
  Label: Gravity Main : Trunk
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [255, 255, 190, 255]
  Width: 4
• Value: sllal
  Label: Lateral Line
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [255, 255, 190, 255]
  Width: 4
• Value: spmaf
  Label: Pressurized Main : Force
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [255, 255, 190, 255]
  Width: 4
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• DECOMMAINTYPE ( type: esriFieldTypeString, alias: Main Type, length: 5 , Coded Values: [sgmac: Gravity Main : Collector] , [sgmbi: Gravity Main : Inverted Siphon] , [sgmco: Gravity Main : Outfall] , ...4 more... )
• ADMINISTRATIVEAREA ( type: esriFieldTypeString, alias: Administrative Area, length: 4 , Coded Values: [BCH: BC Hydro] , [CRD: Capital Regional District] , [CS: District of Central Saanich] , ...11 more... )
• FACILITYID ( type: esriFieldTypeString, alias: Facility ID, length: 12 )
• MATERIAL ( type: esriFieldTypeString, alias: Material, length: 30 , Coded Values: [AC: Asbestos Cement] , [CI: Cast Iron] , [CL: Concrete Liner] , ...28 more... )
• DIAMETER ( type: esriFieldTypeSmallInteger, alias: Diameter (mm) , Coded Values: [-1: Other] , [0: Unknown] , [25: 25] , ...39 more... )
• SHAPE ( type: esriFieldTypeGeometry, alias: SHAPE )
• SHAPE.LEN ( type: esriFieldTypeDouble, alias: SHAPE.LEN )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

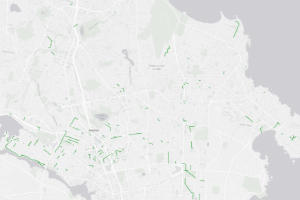

  Iteminfo   Thumbnail   Metadata
